On this pattern

System Pattern 07 / Durable Execution & Integration

Accepted is a promise.

Durable, Replayable Execution

Work accepted by an interface should survive downstream failures, resume from a verified checkpoint, and finish in an explicit state.

Maturity: Reference design / Specified
Critical uncertainty: Accepting work does not prove that an external destination completed it. Completion requires reconciliation or an explicitly owned exception.
Human boundary: Resolve exceptions, correct inputs, authorize guarded replay or compensation
Applications: Web forms · CRM synchronization · Document processing · Batch imports

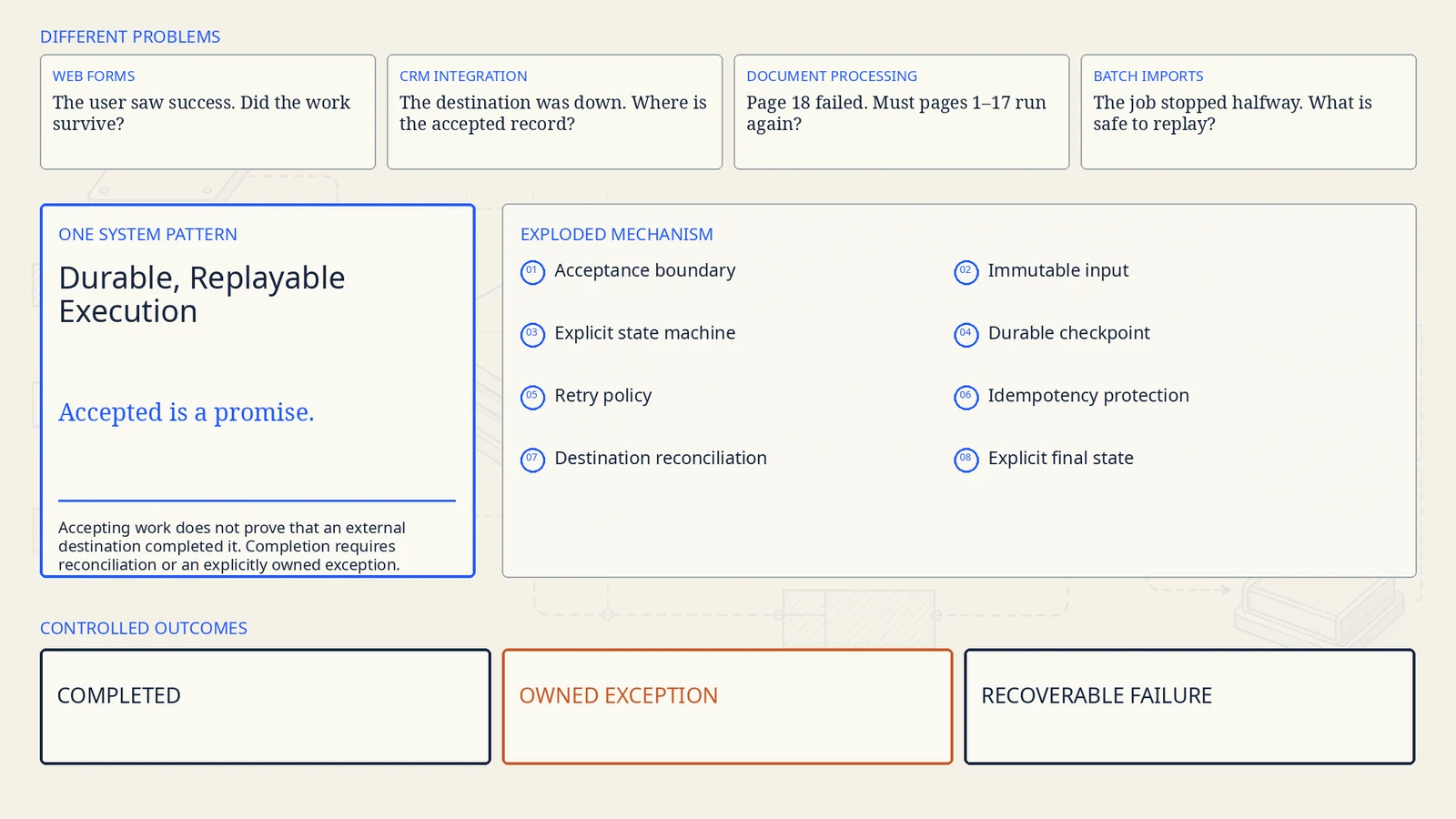

Four accepted workloads converge on a durable execution record, pass through eight checkpointed layers, and end as completed, owned exception, or recoverable failure.

Problem shape

The problem beneath them

Persist accepted work before acknowledging it, advance it through explicit replay-safe states, reconcile external effects, and leave every attempt in a state with a named owner.

Distributed work crosses failure boundaries. A process can crash after committing locally but before notifying a queue. A worker can time out after a destination committed an effect. A retry can run against changed source data. A batch can contain completed, rejected, and unknown items at the same time. “Try again” is therefore not a complete recovery policy.

The pattern separates intent, attempt, and effect. Intent records what the system accepted. Attempts record executions and their evidence. Effects identify externally observable changes. State transitions connect them without pretending they form one atomic transaction. This separation makes uncertain outcomes representable: an attempt may be unknown even though the accepted intent remains recoverable.

Durability also requires ownership. Exhausting retries is not a final state unless a person or service owns the resulting exception and has enough evidence to act. Likewise, “sent” is not “completed” when the destination is authoritative. Completion should follow a destination receipt, read-after-write check, or another explicit reconciliation rule.

Accepting work does not prove that an external destination completed it. Completion requires reconciliation or an explicitly owned exception.

This pattern governs the lifecycle of accepted work. It does not make a non-idempotent destination transactional, guarantee that a third party retains data, or decide the business validity of an input. Those concerns need destination-specific controls and policy.

Different problems, same shape

The surface changes. The decision structure persists.

01 / Web forms

The user saw success. Did the work survive?

An interface confirms receipt before downstream work finishes.

02 / CRM integration

The destination was down. Where is the accepted record?

A remote write fails after the source has acknowledged the request.

03 / Document processing

Page 18 failed. Must pages 1–17 run again?

A multi-stage job retains no trustworthy progress boundary.

04 / Batch imports

The job stopped halfway. What is safe to replay?

Partial effects exist, but their relationship to the input is unclear.

All four questions converge into Durable, Replayable Execution.

Exploded pattern

Open the mechanism at every decision boundary.

01
Acceptance boundary

Question

At what point may the interface promise that work has been accepted?

Responsibility

Validate the minimum envelope, assign a stable work identifier, and durably commit intent before acknowledging receipt.

Input

Request payload, caller identity, tenancy, policy context, and any client idempotency key.

Output

Durable acceptance record and acknowledgement correlated to its identifier.

Stops when

The record is committed or the caller receives an explicit rejection with no implied acceptance.
02
Immutable input

Question

Can a replay reconstruct the exact material input originally accepted?

Responsibility

Preserve the canonical payload, source references, version identifiers, and integrity metadata without later mutation.

Input

Accepted envelope and retrievable source artifacts.

Output

Versioned input snapshot or content-addressed references with provenance.

Stops when

Material inputs are frozen, integrity-checkable, and subject to an explicit retention policy.
03
Explicit state machine

Question

Which transitions are legal, and who may perform them?

Responsibility

Represent pending, active, waiting, reconciling, failed, and final states with guarded transitions.

Input

Acceptance record, current state, event, actor, and transition preconditions.

Output

Atomic state transition plus timestamped transition evidence.

Stops when

The event is applied once, rejected as illegal, or retained for investigation.
04
Durable checkpoint

Question

What verified progress can a later attempt reuse safely?

Responsibility

Commit stage outputs and their input/version fingerprints at meaningful restart boundaries.

Input

Stage result, input identity, code or policy version, and validation evidence.

Output

Checkpoint that is reusable only under matching preconditions.

Stops when

The checkpoint and state transition are durably associated.
05
Retry policy

Question

Is another attempt safe and likely to improve the outcome?

Responsibility

Classify failures, schedule bounded retries with backoff, and prevent permanent errors from cycling.

Input

Failure class, attempt history, destination health, deadline, and retry budget.

Output

Retry schedule, deferred state, or exception route.

Stops when

Work succeeds, reaches its retry/deadline bound, or a non-retryable condition is established.
06
Idempotency protection

Question

Could replay duplicate an internal or external effect?

Responsibility

Give each effect stable identity and suppress, deduplicate, or reconcile repeated attempts.

Input

Work identifier, effect key, destination scope, and prior effect evidence.

Output

One authorized effect, an existing result, or an ambiguous-effect state.

Stops when

Uniqueness is enforced or uncertainty is routed without repeating the effect blindly.
07
Destination reconciliation

Question

What does the authoritative destination say actually happened?

Responsibility

Compare intended and observed state using receipts, stable destination identifiers, or safe read-back.

Input

Intended effect, attempt evidence, destination response, and observable destination state.

Output

Confirmed completion, confirmed absence, conflict, or unresolved status.

Stops when

Destination state is confirmed or an owned exception records why confirmation is unavailable.
08
Explicit final state

Question

How does the lifecycle end without abandoned work?

Responsibility

Record a controlled outcome, owner, evidence, retention, and permitted recovery action.

Input

State history, reconciliation result, policy, and unresolved conditions.

Output

Completed, owned exception, or recoverable failure.

Stops when

No work remains in an ownerless or semantically ambiguous terminal state.

Decision forks

Every branch states why it exists and when it escalates.

Signals, decisions, reasons, and escalation conditions
Signal	Decision	Reason	Escalates when
No durable acceptance record	Reject or ask caller to retry	The system cannot honestly promise recovery	The caller reports success but no record can be located
Matching completed effect key	Return the prior result	Repeating the effect adds risk without new intent	Destination state conflicts with stored evidence
Transient destination outage	Defer and retry with bounds	Availability may recover without changing intent	Deadline or retry budget is exhausted
Permanent validation rejection	Stop automatic retry	Identical input will reproduce the rejection	Correction requires business authority
Timeout after dispatch	Reconcile before retry	The destination may have committed despite no response	The effect cannot be queried safely
Checkpoint fingerprint mismatch	Recompute from the last valid boundary	Prior output belongs to different material inputs	Recalculation could invalidate downstream effects
Unknown final destination state	Create owned exception	Neither success nor absence is proven	Consequence or age exceeds policy tolerance

Operating paths

Clear, ambiguous, and failed work all reach explicit states.

Clear path

Accept, snapshot, transition through verified checkpoints, apply one effect, reconcile, and finalize.

Final state: Completed.
Owner: Execution service until reconciliation confirms completion.
Evidence: Acceptance ID, input fingerprint, transitions, checkpoint records, effect key, and destination receipt.
Recovery: Replay from the last compatible checkpoint if later verification invalidates completion.

Ambiguous path

Preserve intent, stop duplicate dispatch, inspect destination state, and route unresolved evidence.

Final state: Owned exception.
Owner: Named operations or domain queue with authority to reconcile or correct.
Evidence: Attempt chronology, timeout or conflict, destination queries, and operator disposition.
Recovery: Confirm the existing effect, authorize a guarded replay, compensate, or close with reason.

Failure path

Classify the failure, retain valid checkpoints, exhaust only the permitted retry budget, and pause.

Final state: Recoverable failure.
Owner: Platform service for technical repair, then execution service for resumption.
Evidence: Failure class, stack or protocol detail, affected stage, checkpoint fingerprint, and retry history.
Recovery: Repair the dependency or code, validate compatibility, and resume from the verified boundary.

Authority map

Capability does not grant authority.

RULE

May decide: Validate transitions, retry classes, budgets, and uniqueness constraints
May not decide: Declare an unobserved external effect complete
Required evidence: Rule version, evaluated inputs, and result

MODEL

May decide: Classify an error or propose exception context when policy permits
May not decide: Cause replay, suppress an exception, or assert completion alone
Required evidence: Model/version, bounded input, confidence, and explanation

SYSTEM

May decide: Persist intent, schedule attempts, enforce transitions, and reconcile
May not decide: Invent corrected business data or exceed retry authority
Required evidence: Event log, effect keys, attempts, and destination observations

HUMAN

May decide: Resolve exceptions, correct inputs, authorize guarded replay or compensation
May not decide: Rewrite immutable history or erase contrary evidence
Required evidence: Identity, decision, rationale, and referenced evidence

EXCEPTION

May decide: Hold uncertain work with explicit owner and service expectation
May not decide: Masquerade as success or remain ownerless
Required evidence: Trigger, current state, owner, age, and available recovery actions

Failure modes and recovery

A failed path remains owned, evidenced, and recoverable.

Failures, detection, containment, recovery, and owners
Failure	Detection	Containment	Recovery	Owner
Acknowledgement precedes durable commit	Accepted ID is absent after response	Stop further acknowledgement on unhealthy storage	Re-submit only with caller evidence and deduplication	Interface owner
Worker crashes after effect commit	Attempt lease expires without final transition	Block duplicate effect by key	Read destination and finalize or route uncertainty	Execution service
Corrupt or incomplete checkpoint	Integrity or schema validation fails	Mark checkpoint unusable; retain earlier valid state	Recompute from the previous verified checkpoint	Pipeline owner
Retry storm during outage	Attempt rate or shared failure class exceeds policy	Open circuit and defer work	Probe recovery, release gradually, preserve budgets	Platform owner
Destination changed independently	Reconciliation observes conflicting state	Suspend automatic overwrite	Apply domain conflict policy with human authority	Domain owner
Exception queue loses ownership	Missing owner, stale age, or breached policy	Prevent exception from being treated as final success	Assign, escalate, or return to recoverable failure	Operations lead

Invariants and guarantees

Properties the structure is designed to preserve.

A successful acceptance response corresponds to a durable, addressable intent record.
Material input and provenance remain reconstructable for the required retention period.
State changes are legal, atomic, attributable, and append evidence rather than rewrite history.
Replay never knowingly repeats an effect already confirmed under the same effect identity.
A timeout is represented as uncertainty, not silently converted to success or failure.
Every non-completed outcome has an explicit owner and a permitted recovery route.
Completion is supported by destination evidence when the destination is authoritative.

What changes between implementations

The constraints determine the final mechanism.

Checkpoint granularity follows the cost and determinism of recomputation. Retry limits follow deadlines, dependency behavior, and harm from repeated calls. Effect identity may be per request, item, document page, or business operation. Some destinations offer native idempotency keys; others require a local ledger and reconciliation query. High-volume systems may partition state and use leases, while low-volume systems can favor simpler transactional records.

Retention, encryption, tenancy isolation, and operator access follow the sensitivity of accepted inputs. Human-review capacity determines escalation thresholds and exception service levels. None of these choices removes the need for a durable acceptance boundary, explicit transitions, and truthful final states.

Evidence chain

Follow the pattern into systems and software.

Architecture and controls specified; no production results published.

The lead-operations design study is a relevant reference-design relationship because accepted lead events may cross validation, enrichment, identity, and CRM-delivery boundaries. The invoice-intake design study is related because document and page processing can preserve verified progress while downstream extraction or review pauses. These links show where the pattern can compose into a larger design; they do not claim that this exact reference design was implemented or measured in either case.

Entity resolution can consume replayed records only when original identity evidence remains stable. Risk-aware model cascades can run as checkpointed stages, but route selection must not change replay semantics or bypass an authority gate.

Status is REFERENCE DESIGN and maturity is specified. The architecture, states, controls, boundaries, and recovery responsibilities are described here. No production results are published.

No open-source implementation is linked. No evaluation fixture, test, or benchmark is linked. The related design studies are design relationships, not evidence that this pattern has been implemented, tested, or measured as a standalone artifact.

Reference designDurable, Replayable ExecutionThis specified pattern and its controls.
Reference designReliable lead intakeRelated case-study system.
Reference designInvoice checks before ERP entryRelated case-study system.

Known boundaries

Limitations and non-fit

This pattern cannot provide atomicity across an external destination that exposes neither idempotency nor observable state. It can make uncertainty explicit, but a human or compensating process may still be required. It also does not guarantee deterministic model output; checkpoints must capture outputs and versions when exact replay matters.

For synchronous, single-transaction work entirely inside one reliable database, a full durable executor may add needless machinery. For fire-and-forget telemetry where loss is explicitly acceptable, the promise is intentionally weaker. The pattern is a poor fit when nobody can own exceptions or when source retention rules prevent enough evidence from being preserved; those constraints must be resolved before claiming recoverability.

Related patterns

Continue through the adjacent decision structures.

The central design move is to make acceptance a durable obligation rather than a successful moment at an interface. Once intent, attempts, effects, and ownership are separate records, interruption becomes a state the system can reason about. Replay then means continuing from verified evidence—not hoping that running everything again produces the right world.
