On this pattern

System Pattern 11 / Operations, Privacy & Security

Private means the fallback stays private too.

Private Inference with No-Egress Fallback

Keep the complete inference path—not only the model endpoint—inside an approved boundary, and fail safely when local capacity or components are unavailable.

Maturity: Reference design / Specified
Critical uncertainty: Private inference includes preprocessing, embeddings, retrieval, logs, traces, evaluation artifacts and fallback behaviour—not only the language-model server.
Human boundary: Approve scoped interpretation, correct output, or authorize permitted specialist handling
Applications: Sales-call analysis · Contract review · Source-code assistance · Capacity-constrained local inference

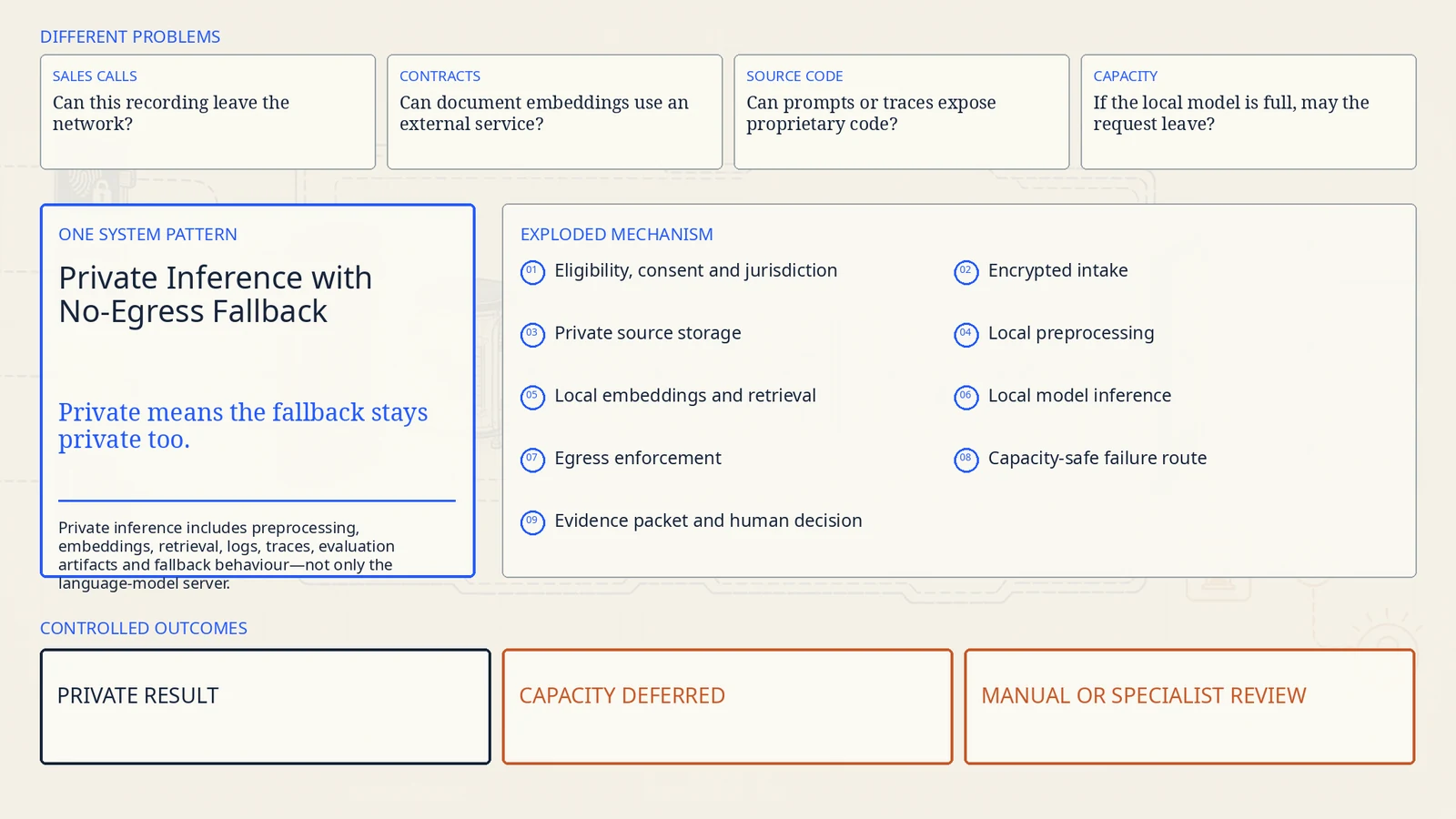

Sensitive sales calls, contracts, source code, and capacity requests remain inside a bounded nine-layer inference path and end as private result, capacity deferred, or manual review.

Problem shape

The problem beneath them

Authorize the workload before intake, keep every data-bearing stage inside an enforced boundary, and defer or route to an approved human process instead of failing over to unapproved infrastructure.

Inference systems create many representations: uploaded bytes, decoded text, temporary files, features, embeddings, retrieved passages, prompts, model caches, outputs, logs, traces, reviewer packets, and evaluation examples. Any one can leave through network calls, shared observability, package downloads, support tooling, backups, or permissive failover.

“On-prem model” therefore describes deployment, not a complete control. The system needs an explicit approved boundary, data-flow inventory, identity and purpose checks, egress enforcement independent of application intent, and failure routes that preserve the boundary under pressure. The no-egress requirement should be tested at network and dependency layers, not merely documented in code.

Capacity deserves special treatment. A full queue is an availability condition, not authorization to send data elsewhere. Safe outcomes can include deferral, reduced approved processing, or manual/specialist review. The selected route must disclose its state and owner rather than quietly producing a less-private result.

Private inference includes preprocessing, embeddings, retrieval, logs, traces, evaluation artifacts and fallback behaviour—not only the language-model server.

This pattern controls data location and route eligibility. It does not by itself establish lawful purpose, eliminate insider risk, prevent every model memorization concern, or certify a deployment against a regulatory framework. Those claims require governance and evidence beyond architecture.

Different problems, same shape

The surface changes. The decision structure persists.

01 / Sales calls

Can this recording leave the network?

Raw audio and transcript contain customer and employee information.

02 / Contracts

Can document embeddings use an external service?

Derived representations may disclose protected document content.

03 / Source code

Can prompts or traces expose proprietary code?

Operational observability can copy sensitive context outside the inference host.

04 / Capacity

If the local model is full, may the request leave?

A generic failover policy points toward an unapproved provider.

All four questions converge into Private Inference with No-Egress Fallback.

Exploded pattern

Open the mechanism at every decision boundary.

01
Eligibility, consent and jurisdiction

Question

May this data be processed for this purpose in this boundary?

Responsibility

Verify actor, consent or lawful basis, purpose, jurisdiction, retention class, and permitted operations before intake.

Input

Request identity, subject/data classification, policy, consent record, and intended use.

Output

Authorized processing envelope or explicit rejection/manual route.

Stops when

Scope, boundary, and allowed outputs are established without inference.
02
Encrypted intake

Question

Can protected input enter without exposure or substitution?

Responsibility

Authenticate sender, encrypt transport, validate integrity and type, assign stable identity, and avoid unsafe temporary handling.

Input

Authorized envelope and source artifact.

Output

Encrypted, integrity-checked intake record inside the boundary.

Stops when

Durable custody is confirmed or the transfer is rejected cleanly.
03
Private source storage

Question

Where do originals, derivatives, and keys live, and for how long?

Responsibility

Apply encryption, tenancy separation, least privilege, retention, deletion, backup, and access audit controls.

Input

Intake record, data class, identity, retention policy, and key context.

Output

Controlled source object and access-scoped references.

Stops when

Storage and lifecycle controls match the authorized envelope.
04
Local preprocessing

Question

Do decoding, transcription, parsing, redaction, and feature extraction stay private?

Responsibility

Run approved local components with constrained dependencies, temporary storage, and telemetry.

Input

Controlled source references and processing contract.

Output

Versioned local derivatives with provenance.

Stops when

Required derivatives are produced or an internal failure route is entered.
05
Local embeddings and retrieval

Question

Can indexing and context selection occur without external data or metadata leakage?

Responsibility

Compute embeddings locally, isolate indexes, enforce retrieval permissions, and retain source/version links.

Input

Local derivatives, authorized corpus, identity, and query.

Output

Permission-filtered local context and trace.

Stops when

Context is bounded to permitted sources or evidence is insufficient.
06
Local model inference

Question

Can an approved model produce the bounded output within local resource limits?

Responsibility

Run pinned models and serving components with controlled prompts, tools, caches, and output validation.

Input

Authorized task, local context, model/version, and resource allocation.

Output

Candidate private result, uncertainty, and internal execution evidence.

Stops when

Output passes its contract, escalates, or reaches a capacity/technical bound.
07
Egress enforcement

Question

What prevents any component from sending protected material outside?

Responsibility

Deny unapproved network paths, proxies, DNS, telemetry, remote tools, and fallback endpoints at independent control layers.

Input

Workload identities, allowlists, network policy, dependency inventory, and runtime events.

Output

Enforced communication boundary and auditable deny/allow events.

Stops when

Every required flow is explicitly authorized and unexpected egress is blocked.
08
Capacity-safe failure route

Question

What happens when private infrastructure cannot process the request?

Responsibility

Apply queue bounds, deadlines, prioritization, approved degradation, and no-egress fallback policy.

Input

Capacity state, workload priority, deadline, privacy class, and eligible local routes.

Output

Capacity deferred or manual/specialist review state.

Stops when

The request has a truthful owner and no unapproved route is attempted.
09
Evidence packet and human decision

Question

What may an authorized reviewer see and decide without widening exposure?

Responsibility

Assemble minimal local evidence, enforce reviewer authorization, and record scoped disposition.

Input

Candidate result or failure, source locators, policy, and reviewer role.

Output

Private result, correction, deferral, or specialist disposition with audit evidence.

Stops when

Decision, authority, evidence, and permitted downstream release are recorded.

Decision forks

Every branch states why it exists and when it escalates.

Signals, decisions, reasons, and escalation conditions
Signal	Decision	Reason	Escalates when
Purpose, consent, or jurisdiction fails	Reject or use approved governance route	Infrastructure location cannot cure unlawful processing	Applicability requires privacy/legal authority
Workload is authorized and local capacity exists	Run complete private path	All stages can remain within approved controls	Evidence or output contract fails
Retrieval source is outside user permission	Exclude source	Local storage does not imply universal access	Required evidence cannot be lawfully retrieved
Component attempts unapproved egress	Block, alert, and contain	Boundary enforcement must be independent of component intent	Data exposure may have occurred
Local queue reaches policy bound	Defer or prioritize locally	Capacity does not authorize public failover	Deadline requires authorized manual handling
Approved specialist environment exists	Transfer only under explicit policy	Another boundary may be eligible if separately authorized	Data, purpose, or recipient exceeds authorization
No private route can satisfy task	Return no result or human route	Privacy requirement outranks convenience	Consequence requires accountable disposition

Operating paths

Clear, ambiguous, and failed work all reach explicit states.

Clear path

Authorize, ingest encrypted, process and retrieve locally, enforce egress, validate, and release only the permitted output.

Final state: Private result.
Owner: Private inference service until authorized release; consuming role owns subsequent action.
Evidence: Authorization envelope, artifact IDs, component/model versions, access and retrieval trace, egress events, and output disposition.
Recovery: Reprocess from retained approved inputs when a component or policy version changes.

Ambiguous path

Stop automated release when evidence, authorization, or interpretation is unresolved and present minimal local evidence to an authorized reviewer.

Final state: Manual or specialist review.
Owner: Named privacy, domain, or specialist reviewer.
Evidence: Eligibility result, evidence gaps, local processing trace, candidate result, and reviewer decision.
Recovery: Narrow purpose, obtain authorization or evidence, approve a scoped result, or reject processing.

Failure path

Block unapproved egress, place recoverable requests in bounded local storage, and expose capacity or component failure explicitly.

Final state: Capacity deferred.
Owner: Platform operations for restoration and service owner for deadline/queue decisions.
Evidence: Capacity state, failed component, request age and priority, denied fallback, and containment actions.
Recovery: Restore validated local capacity, resume from a safe checkpoint, or move to an independently approved human route.

Authority map

Capability does not grant authority.

RULE

May decide: Enforce eligibility, retention, route allowlists, egress, and mandatory review
May not decide: Invent consent or expand purpose because processing is local
Required evidence: Policy/version, identity, data class, conditions, and result

MODEL

May decide: Analyze permitted local context and report bounded uncertainty
May not decide: Choose an external fallback, change retention, or authorize disclosure
Required evidence: Model/version, local inputs, output, uncertainty, and tool trace

SYSTEM

May decide: Store, process, queue, deny egress, and release approved outputs
May not decide: Bypass network controls or silently downgrade privacy under load
Required evidence: State history, access, component versions, network events, and release record

HUMAN

May decide: Approve scoped interpretation, correct output, or authorize permitted specialist handling
May not decide: Export data outside delegated authority or erase audit evidence
Required evidence: Identity, role, evidence reviewed, purpose, decision, and destination

EXCEPTION

May decide: Hold capacity, authorization, evidence, and integrity failures inside the boundary
May not decide: Become public fallback or indefinite ownerless storage
Required evidence: Trigger, protected artifacts, owner, retention deadline, and recovery options

Failure modes and recovery

A failed path remains owned, evidenced, and recoverable.

Failures, detection, containment, recovery, and owners
Failure	Detection	Containment	Recovery	Owner
Preprocessor calls cloud API	Denied network event or dependency audit	Terminate workload and isolate component	Replace with approved local component; review attempted payload	Security owner
Shared tracing exports prompts	Data-flow test or telemetry inspection	Disable exporter and rotate affected credentials	Deploy local redacted tracing and assess exposure	Observability owner
Cross-tenant vector retrieval	Permission test or result audit finds mismatch	Block index and affected outputs	Repair partition/filter controls, rebuild, and review access	Data platform
Local capacity triggers generic failover	Route trace shows external endpoint selection	Deny at network and mark requests deferred	Correct fallback policy and replay privately	Inference platform
Temporary files outlive retention	Storage scan finds expired derivatives	Quarantine worker and prevent new intake	Securely remove, repair lifecycle, and verify	Platform owner
Reviewer exports evidence improperly	Audit event or control alert	Revoke access and contain destination	Incident response, disposition review, and control correction	Privacy/security owner

Invariants and guarantees

Properties the structure is designed to preserve.

Eligibility, purpose, and boundary are established before protected content is processed.
Originals, derivatives, embeddings, prompts, outputs, logs, and evaluation artifacts follow explicit lifecycle controls.
Retrieval authorization is enforced at query time and preserves source provenance.
Egress is denied by infrastructure controls, not application convention alone.
Capacity or component failure never selects an unapproved external route.
Every deferred or manual state has an owner and retention deadline.
Human review occurs inside an approved boundary and does not silently widen permitted use.

What changes between implementations

The constraints determine the final mechanism.

The approved boundary may be a disconnected host, private datacenter, controlled cloud tenancy, confidential-computing environment, or another architecture accepted by the governing policy. Threat model, jurisdiction, data classes, and audit obligations determine isolation strength. Workload size and latency determine model serving, batching, queueing, and prioritization.

Some systems can redact before deeper processing; others must treat redaction itself as sensitive local inference. Retrieval may use per-tenant indexes or policy filters over shared infrastructure where authorized. Observability can range from aggregate health signals to locally retained detailed traces. Retention and deletion need to cover backups, caches, evaluation corpora, and reviewer exports—not just primary storage.

Evidence chain

Follow the pattern into systems and software.

Architecture and controls specified; no production results published.

on-prem-sales-call-compliance is a relevant reference-design relationship because audio preprocessing, transcription, retrieval, analysis, evidence packets, and review can all fall inside the privacy boundary. This relationship does not claim that the complete pattern described here was implemented, tested, certified, or measured in that case.

Evidence-bounded inference ensures local conclusions remain grounded. Risk-aware cascades can choose only among privacy-eligible routes. Durable execution lets capacity-deferred work resume without moving outside the boundary.

This is a REFERENCE DESIGN with specified architecture and controls; no production results are published. No open-source implementation is linked. No evaluation fixture, test, or benchmark is linked. No certification, penetration-test result, privacy assessment, or measured no-egress guarantee is claimed.

Reference designPrivate Inference with No-Egress FallbackThis specified pattern and its controls.
Reference designCall review inside a private networkRelated case-study system.

Known boundaries

Limitations and non-fit

No-egress controls reduce one class of exposure but do not eliminate compromised administrators, malicious dependencies, hardware attacks, inference leakage to authorized users, or improper downstream use. Encryption at rest does not protect data during authorized processing. Local operation can also delay security updates or reduce model capability; those trade-offs need explicit ownership.

The pattern is not justified merely as branding where data is already public and policy permits managed services. It is non-fit when the organization cannot patch, monitor, capacity-plan, and incident-manage the private stack. If a hard deadline cannot tolerate deferral and no approved alternate boundary exists, the service contract must reject that workload rather than promise unavailable private processing.

Related patterns

Continue through the adjacent decision structures.

Private inference is a data-flow property that must remain true during normal operation, overload, component failure, review, and evaluation. The decisive control is often the refusal to fall back: when capacity disappears, the request waits or reaches an approved owner, but the privacy boundary does not move.
